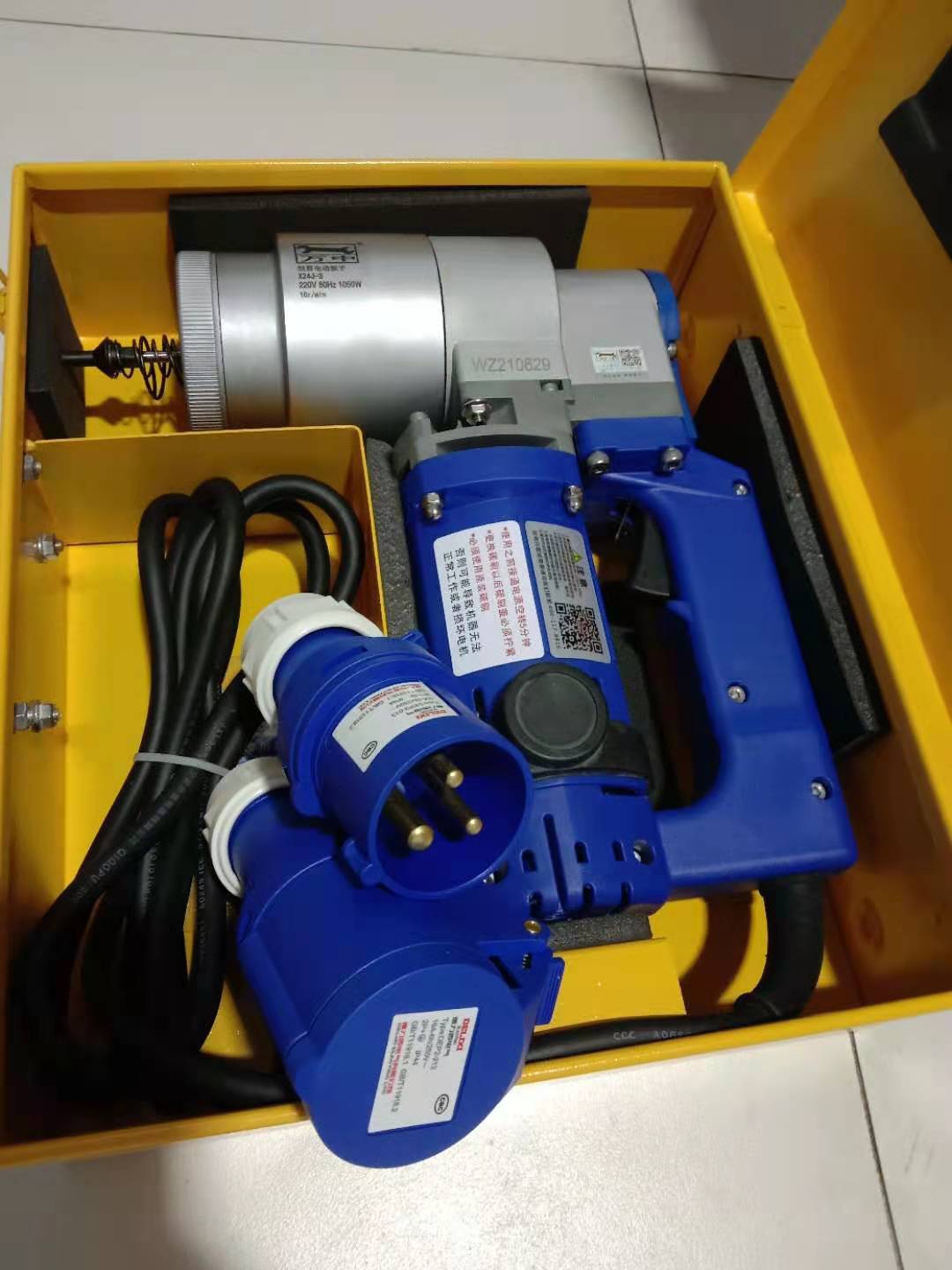

Fixed torque electric wrench product features:

数字力矩电动扳手结构新颖、体积小、重量轻、可靠性好。由于采用静扭结构，操作平稳，无振动，无冲击，噪音低，操作人员不受反向扭矩的影响，所以劳动强度低。额定电压220v50/60hz精度±5%

The digital torque electric wrench has the advantages of novel structure, small volume, light weight and good reliability. Due to the static torsion structure, the operation is stable, no vibration, no impact, low noise, and the operators are not affected by the reverse torque, so the labor intensity is low. Rated voltage 220V50 / 60Hz, accuracy ± 5%

固定力矩电动扳手应用行业:

Fixed torque electric wrench application industry:

固定力矩电动扳手广泛应用于螺栓焊接结构桥梁、厂房、铁塔、化工、冶金、发电设备的安装。大型机械、起重设备和车辆的装配作业，对螺钉和螺钉紧固件的扭矩和轴向拉力都有严格的要求。

Fixed torque electric wrenches are widely used in the installation of bolted welded bridges, factories, iron towers, chemical industry, metallurgy and power generation equipment. The assembly of large machinery, lifting equipment and vehicles has strict requirements on the torque and axial tension of screws and screw fasteners.

固定力矩电动扳手螺栓紧固操作

Fixing torque electric wrench bolt tightening operation

将扭矩电动扳手1中的螺栓紧固操作固定，安装反力支撑，拧紧螺钉。启动主机，使方头销孔与反力支撑孔相对应，然后安装扳手座，插入销并与橡胶圈固定。

Tighten the bolts in the torque electric wrench 1, install the reaction support, and tighten the screws. Start the main engine so that the square head pin hole corresponds to the reaction support hole, then install the wrench seat, insert the pin and fix it with the rubber ring.

2.将控制器的扭矩旋钮调整到所需的扭矩值，将主机前后开关调到正位，将扳手安装在螺纹接头的六面。

2. Adjust the torque knob of the controller to the required torque value, adjust the front and rear switches of the host to the positive position, and install the wrench on the six sides of the threaded joint.

3.按下电源开关，扳手就会启动。当反力支座的力矩臂在紧固支座上时(支点可以是相邻的螺栓，也可以是可以制造该支点的其他位置)，螺栓开始紧固。当螺栓扭矩达到预定扭矩时，扳手自动停止，紧固完成，松开电源开关，拧紧下一个螺栓。

3. Press the power switch and the wrench will start. When the torque arm of the reaction support is on the fastening support (the fulcrum can be an adjacent bolt or other position where the fulcrum can be manufactured), the bolt begins to fasten. When the bolt torque reaches the predetermined torque, the wrench will automatically stop, the tightening is completed, loosen the power switch and tighten the next bolt.

4.扳手自动停止后，支架的转矩臂自动脱离支点，利用反力支架的弹性变形力将扳手取下。如果转矩臂不能从支点上拆下，则可以翻转正反转开关，拆下电源开关扳手。

4. After the wrench stops automatically, the torque arm of the support will automatically disengage from the fulcrum, and the wrench will be removed by using the elastic deformation force of the reaction support. If the torque arm cannot be removed from the fulcrum, turn over the forward and reverse switch and remove the power switch wrench.
